Some RV manufacturers deviated from the original design of Coleman (AirXcel/RVProducts/RVP) air conditioners that prescribed molex connectors (pictured). In the altered wiring, the air conditioner connecting wires leading from the wall to the thermostat were connected by crimps or wire nuts (direct wired).

If yours is direct wired this way to the thermostat (without connectors), you will need our simple adapter to complete your installation of the EasyTouch RV WiFi thermostat. How to check before your purchase? Remove your thermostat from the wall to see if your wires in the wall have a similar connector. If none are found, our engineers have designed what you need to make our WiFi thermostat work for you: our 354/355 Wire Harness pigtail assembly (HAR-354-355).

CALL TO ORDER: 833-609-6800

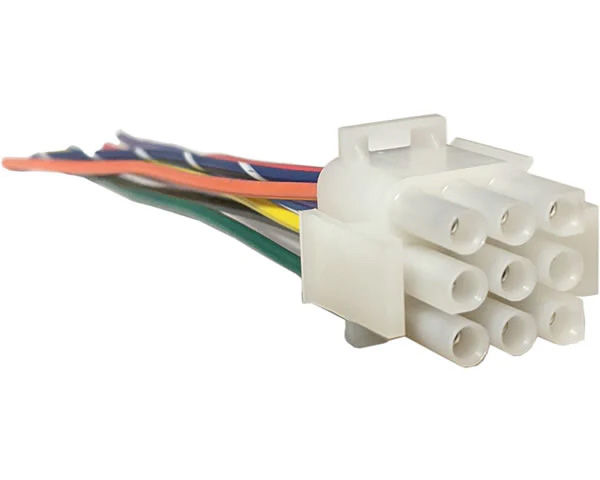

EasyTouch RV™ Thermostat Wire Harness

SKU: HAR-354-355

$18.50

Wire Length: Approximately 6 inches
The wire harness can be spliced easily to your existing wall wires. Just Google: HOW TO SPLICE WIRES to find various approaches like the simple wire nut method. Follow one of our wiring guides from the EasyTouch RV 355 Operating Manual found at (Table 1 (p. 4) or Table 5 (p. 15)) or in the EasyTouch RV 354 Operating Manual found at. (Table 1 (p. 4) or Table 5 (p. 15)). If yours is the EASYTOUCH RV 354 thermostat, use the PURPLE WIRE. If yours is the EASYTOUCH RV 355 thermostat, IGNORE THE PURPLE WIRE in the center as it is not needed in the 355.

Micro Air EasyStart

EasyTouch RV™ Thermostat Wire Harness

Features
